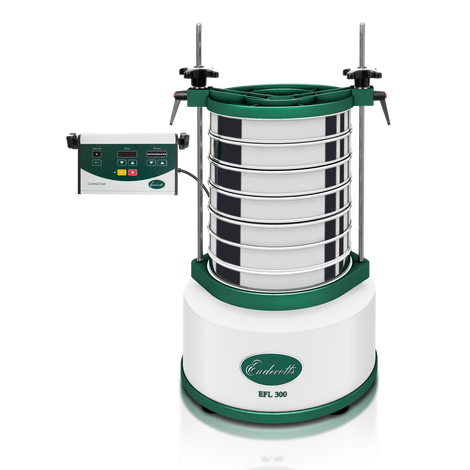

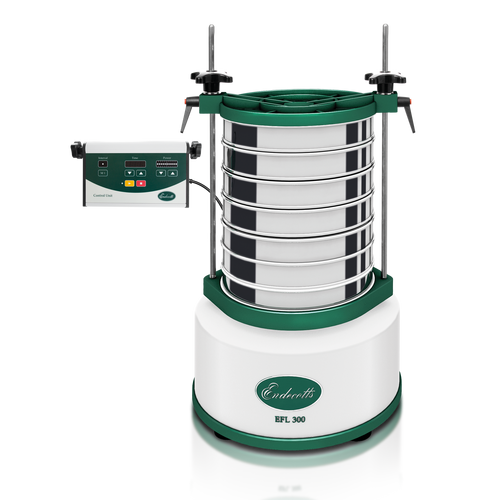

The Sieve Shaker EFL 300 incorporates robust construction with modern sieve shaker technology.
The EFL 300 is extremely durable while maintaining a lightweight, powerful design that enables efficient processing of heavier and larger sample volumes.
Highly versatile, the sieve shaker EFL 300 comes with standard amplitude adjustment and features an electromagnetic drive system used in contemporary sieve shakers. Its compact and lighter build allows both floor‑standing and bench‑mounted operation, making it suitable for laboratory and industrial environments alike. All sieving parameters are conveniently configured via the intuitive remote control unit.
Sieve Shaker EFL 300 Product Advantages
- New electromagnetic drive
- Adjustable amplitude
- Floor or table mounted
- Suitable for wet or dry sieving
- Digital controls for easy and reliable operation via external interface
- Economical
Sieve Shaker EFL 300 Technical Data
| Range: | 20 µm - 40 mm |
|---|---|
| Drive / sieving motion: | electromagnetic 3D |
| Max. batch / feed capacity: | 6 kg |
| Max. number of sieves: | 6 / 12 |
| Max. mass of sieve stack: | 10 kg |
| Amplitude: | 0 - 2 mm//digital setting in 10 steps |
| Time display: | digital, 00:10 - 99:50 min (external unit) |
| Suitable for dry sieving: | yes |
| Suitable for wet sieving: | yes |
| Sieve diameter: | 100 mm / 150 mm / 200 mm / 250 mm / 300 mm / 315 mm / 3" / 8" / 12" |
| Max. height of sieve stack: | 450 mm |
| Clamping device: | quick-release clamping system included |
| Model: | floor or benchtop |
| Protection code: | IP 21 |
| Electrical supply: | different voltages available |
| Power connection: | 1-Phase |
| W x H x D: | 427 mm x 240 mm |
| Net weight: | ~ 45 kg |
| Standards: | CE |

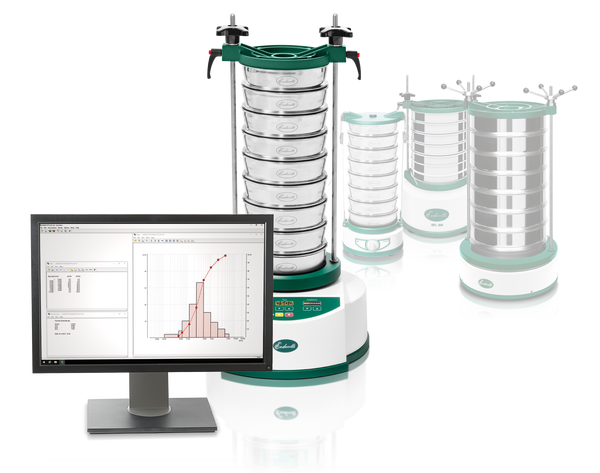

SieveWare Evaluation Software
SieveWare, the software for particle size analyses, exceeds manual evaluation in many aspects, due to the fact that the software is able to automatically control the necessary measurement and weighing procedures.
- Automatic registration, evaluation and administration of measurement data
- Automatic detection and configuration of common analytical scales
- Comprehensive data export
